Deploying Che 7 with custom images (air gap environment)

Number 5: deploying Che 7 behind a firewall (air gap environment) using chectl –che-operator-cr-yaml=…

Deploying Che 7 with custom images

Unlike  Deploying Che 7 to Minishift 1.34+, this doc will explain how to do an Eclipse Che 7 deployment with a custom resource yaml file to override the images used in the deployment.

This process can be used for many things, but in this example it’ll be in support of an  air gap environment, where an organization cannot directly see Quay or Red Hat Container Catalog, and must instead reference internally mirrored artifacts within their organization’s firewall.

Prerequisites

You need the latest  Minishift and n chectl releases.

Fetch them like this (or similar):

1
2
3
cd ~/bin
curl -sSL https://github.com/che-incubator/chectl/releases/download/20190724230954/chectl-linux -o chectl
chmod +x chectl
1
2
3
4
5
cd /tmp
curl -sSL https://github.com/minishift/minishift/releases/download/v1.34.1/minishift-1.34.1-linux-amd64.tgz -o minishift.tgz
tar xvzf minishift.tgz
mv minishift*/minishift ~/bin/
chmod +x ~/bin/minishift

Procedure

  1. Start up minishift. (See Start up Minishift for some suggested default settings.)
    1
    minishift start
  2. Log in once startup is complete.
    1
    oc login 192.168.MY.IP:8433 -u system -p admin
  3. For Eclipse Che 7, pull  these images and  publish them to your internal registry:
    • eclipse/che-server:nightly
    • eclipse/che-keycloak:nightly
    • quay.io/eclipse/che-devfile-registry:nightly
    • quay.io/eclipse/che-plugin-registry:nightly
    • centos/postgresql-96-centos7:latest
    • registry.access.redhat.com/ubi8-minimal:8.0
  4. Create a custom resource file, which overrides the default image values from  che-operator defaults.go to use your custom registry’s images.

    NOTE

    To watch the events and verify which images are pulled, see
    this post before performing the next step.

  5. Deploy Che to minishift using the custom resource file created above. In this example the namespace che-op is used instead of the default  che:
    1
    2
    chectl server:start -a operator -p minishift \
      --che-operator-cr-yaml=che7-custom-resource-airgap.yaml -n che-op

    NOTE

    If you use the minishift addon to deploy Che (which uses a deployment configuration instead of an operator), your custom resource file will not be used. The addon is deprecated.

  6. You should see this:

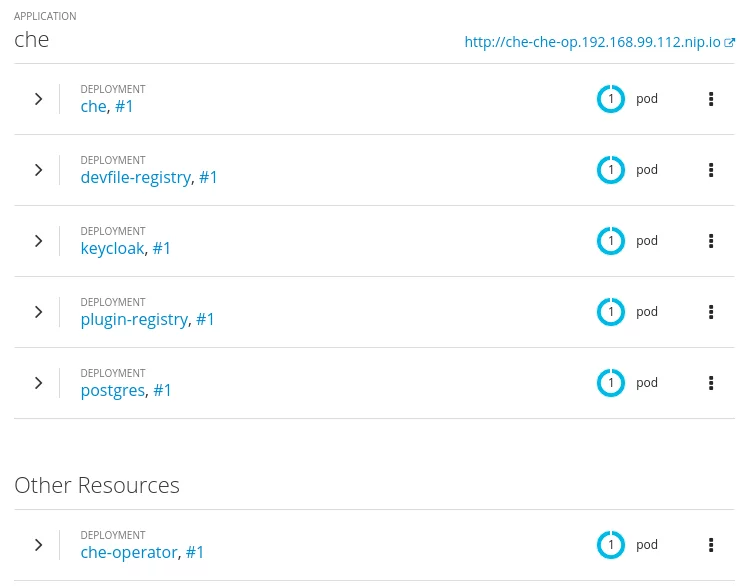

    Once deployed, you should see these in your Minishift console:

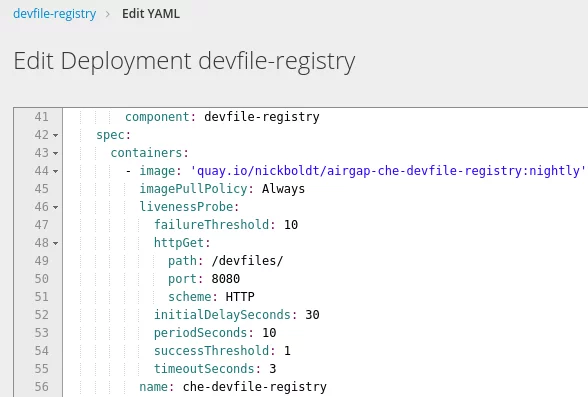

    The custom image reference can be seen in the yaml for the deployment:
